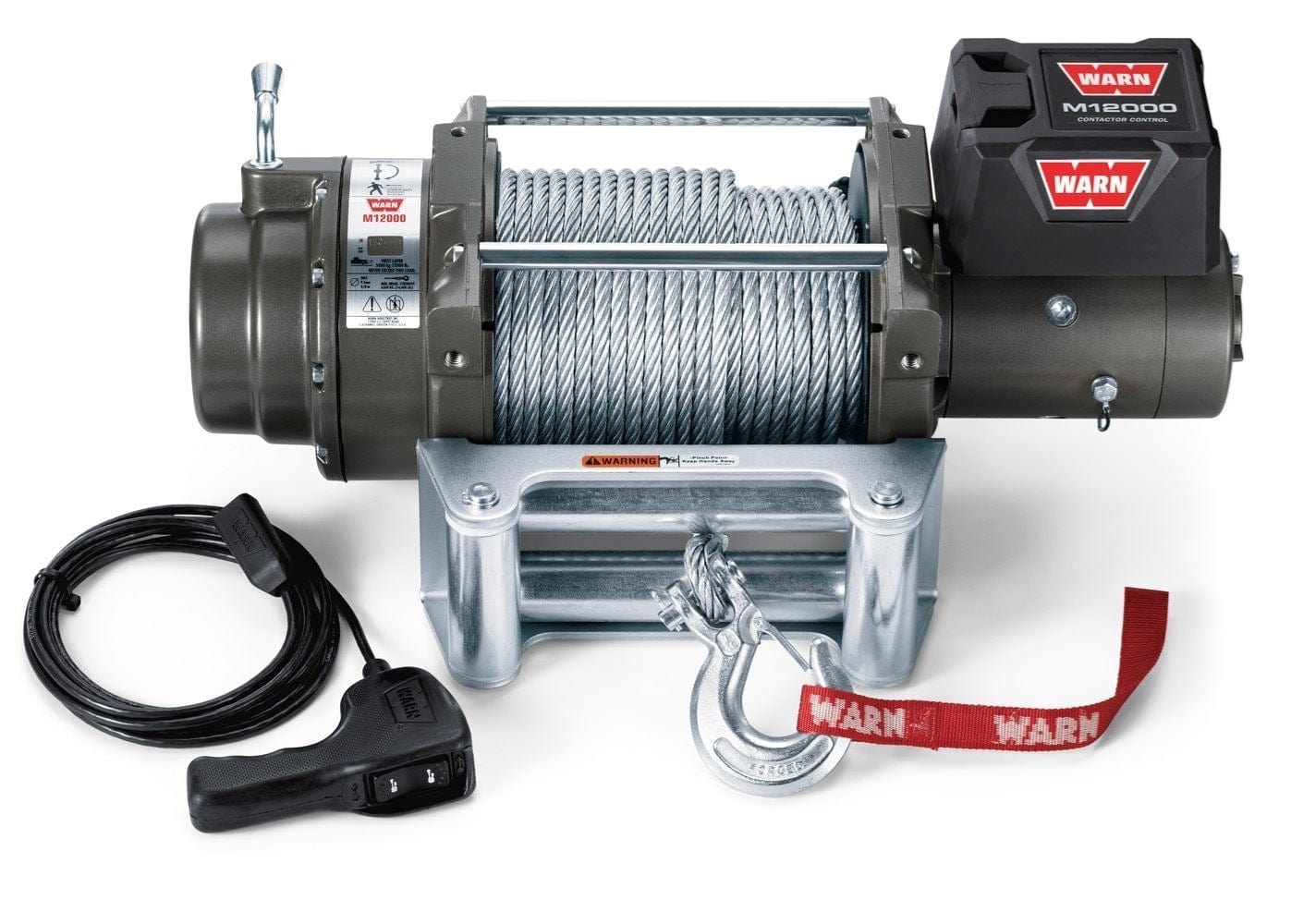

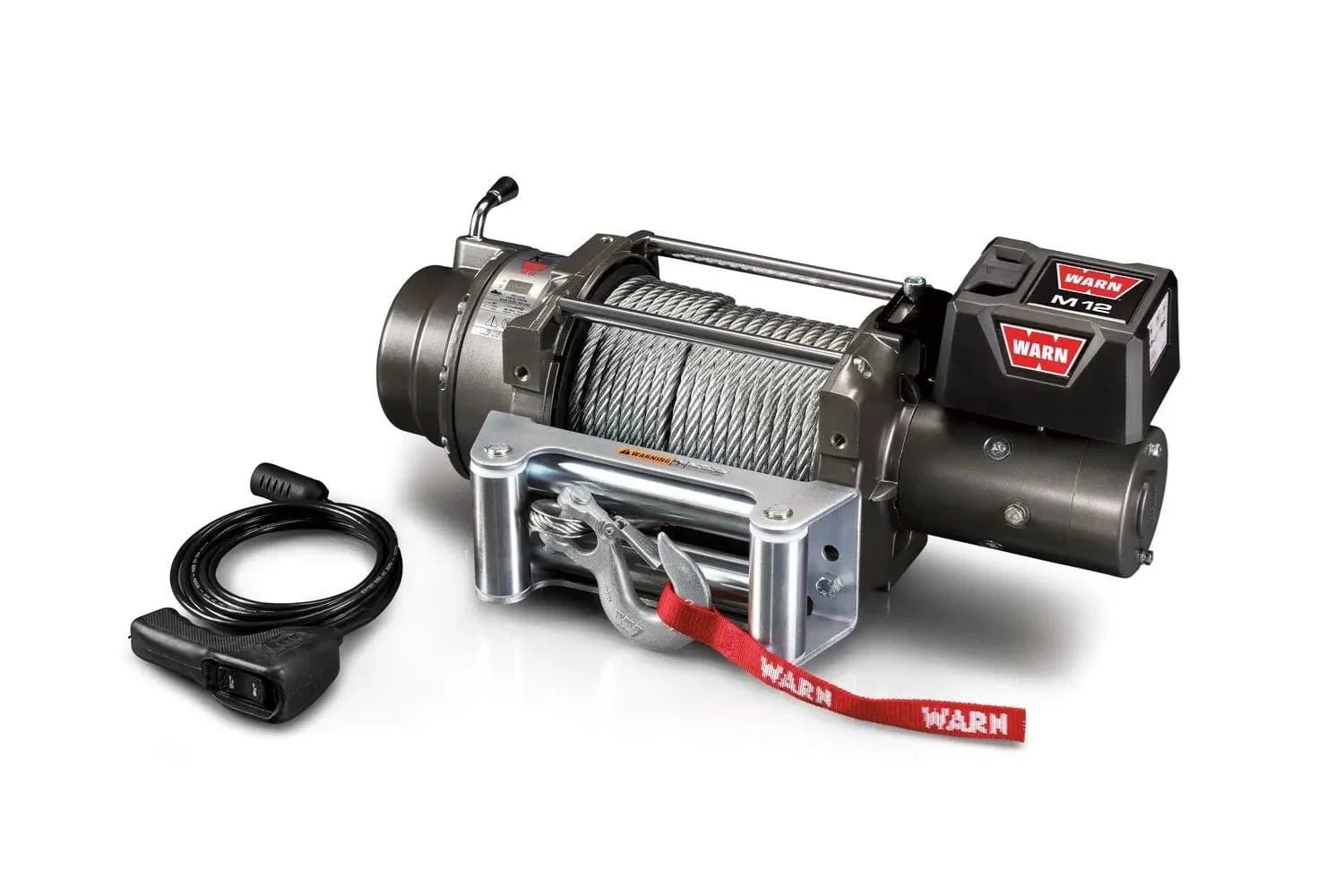

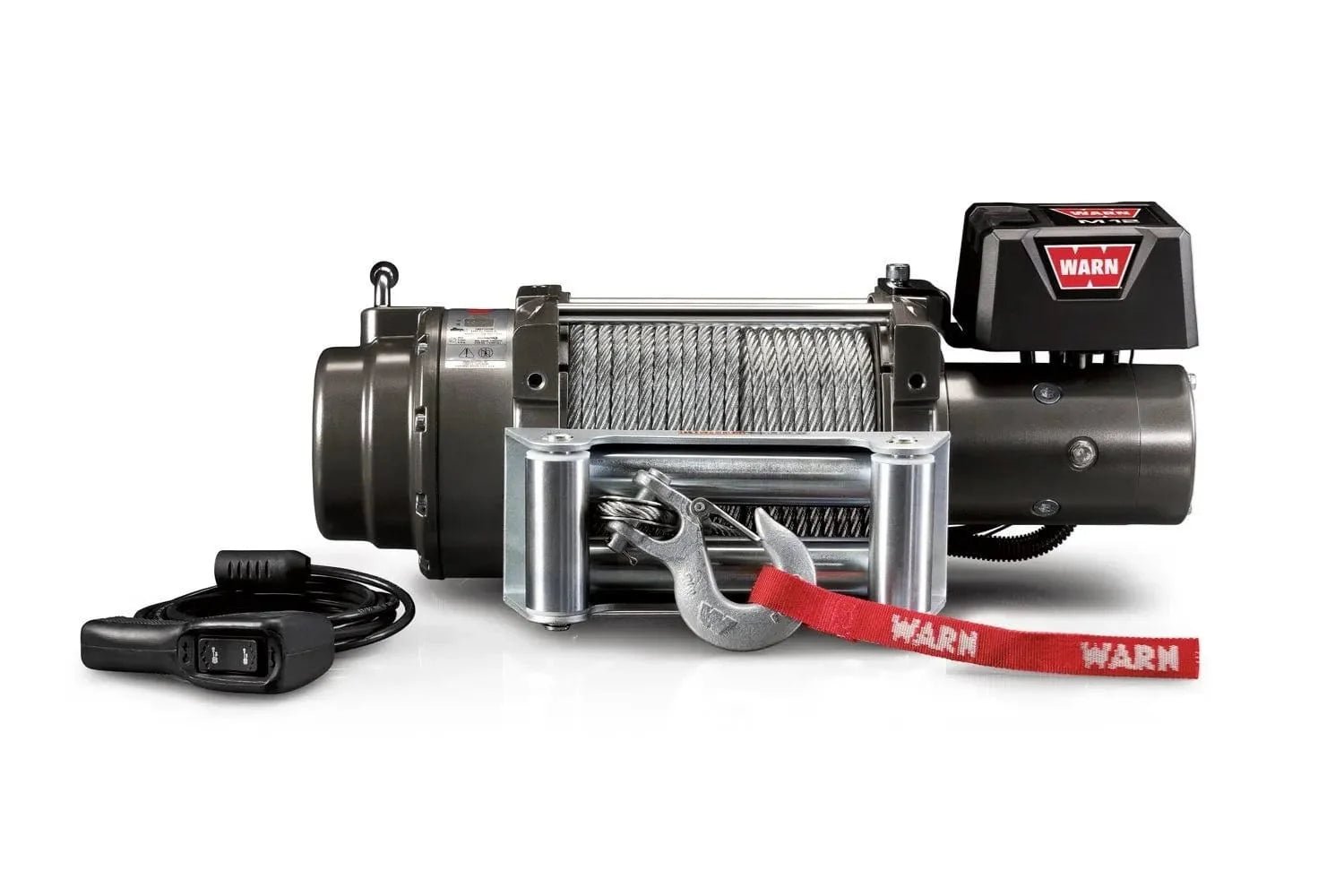

WARN 17801 M12 12V Heavy Weight Winch
SKU:
17801
$2,29499
$2,75399
Unit price
/
Unavailable
Specifications
| Style | |
| Part Number | |
| Weight | |
| Fitment Notes |
Warn M12000 Winch 17801
Features:
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead
- Chip-resistant powder-coated finish
- 125' of 3/8" (38m of 9.5mm) diameter wire rope
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Details:
- Winch Rating: 12000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 125 Feet
- Line Material: Steel

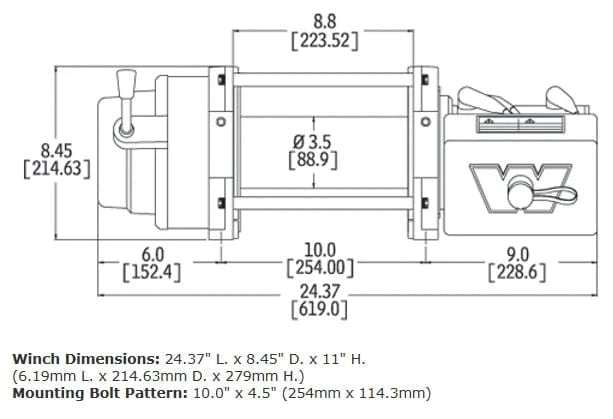

- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 440 Amp Draw At 12000 Pound
- Gear Reduction Ratio: 261:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Gray
- Motor Horsepower: 4.6 Horsepower
- Fairlead Type: Roller
- Remote Type: Wired

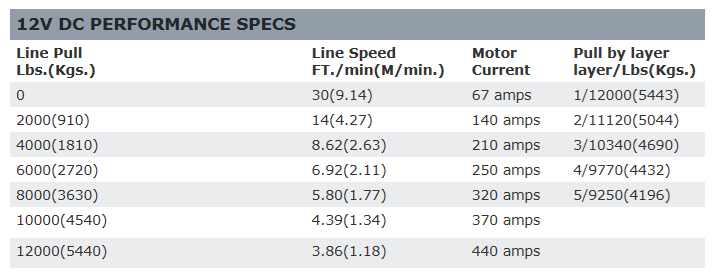

- Line Speed At Max Pull: 3.8 Feet Per Minute At 12000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Estimated Install Time (Hours): 2
