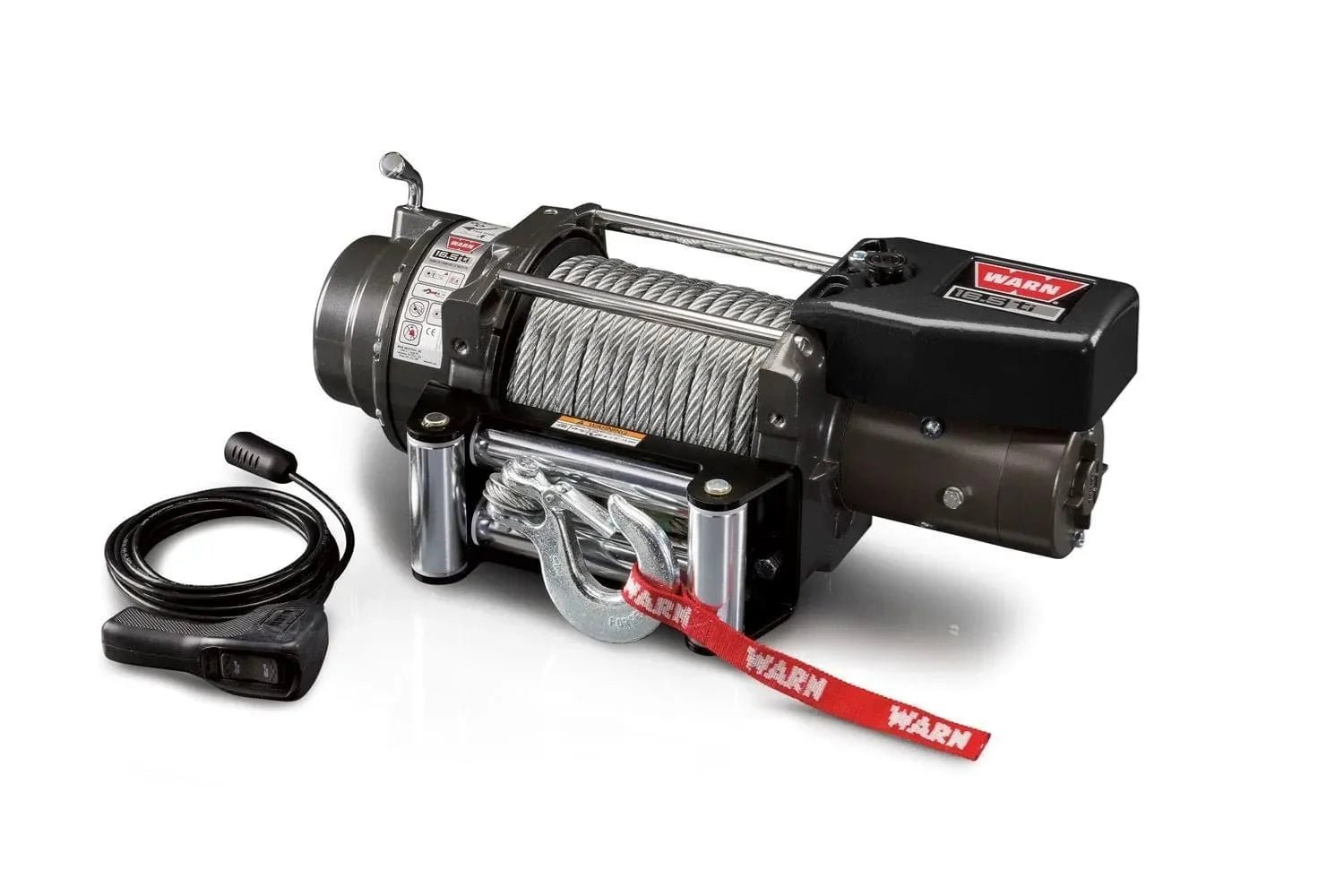

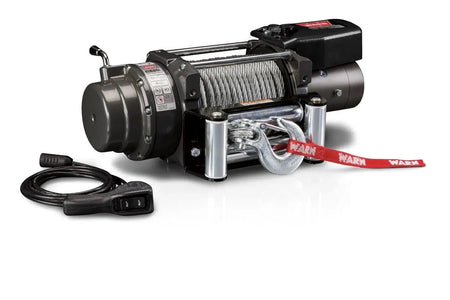

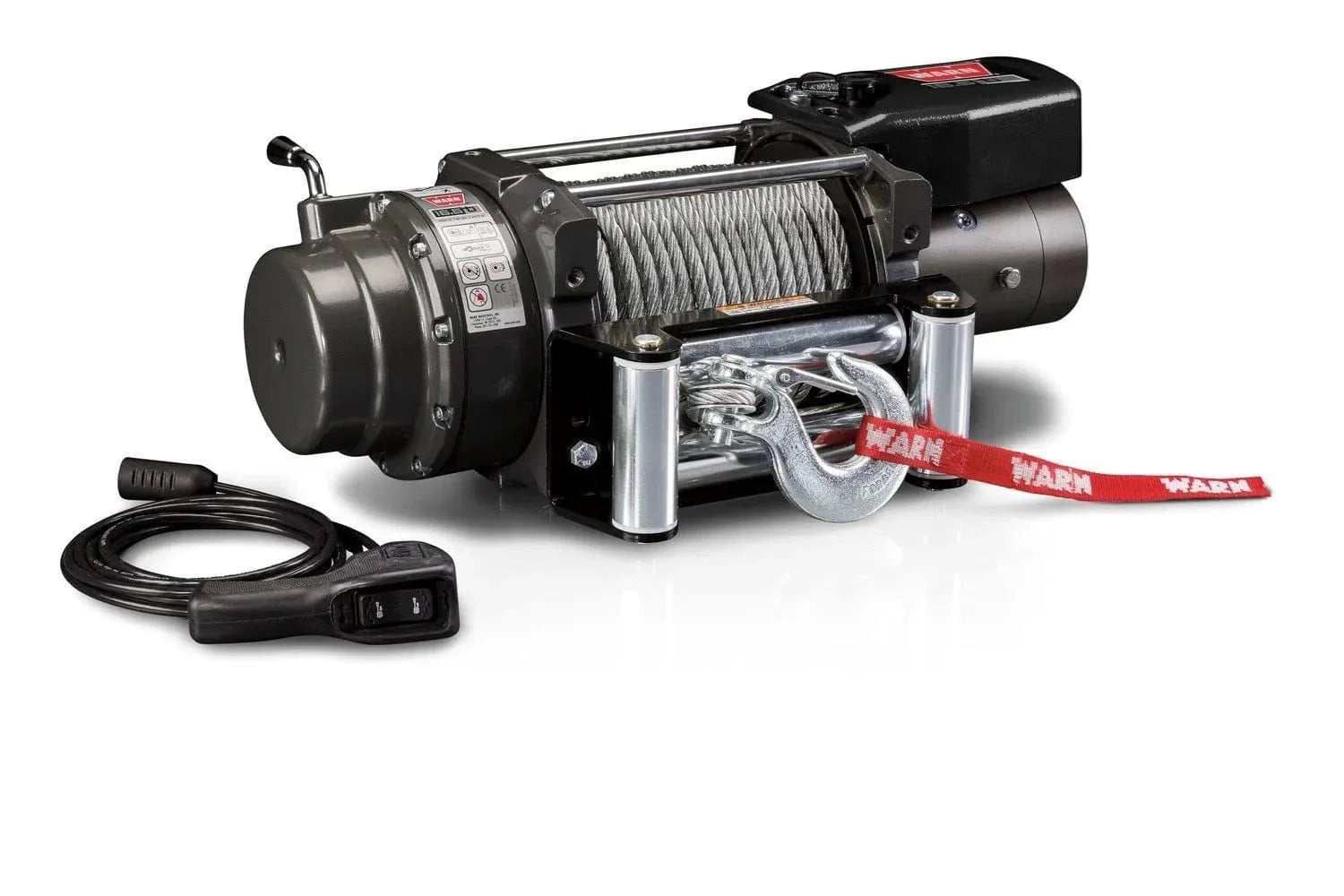

WARN 16.5ti 68801 16.5K Large Size Truck Winch
SKU:
68801
$2,83999
$3,40799
Unit price
/
Unavailable
Specifications
| Style | |
| Part Number | |
| Weight | |
| Fitment Notes |

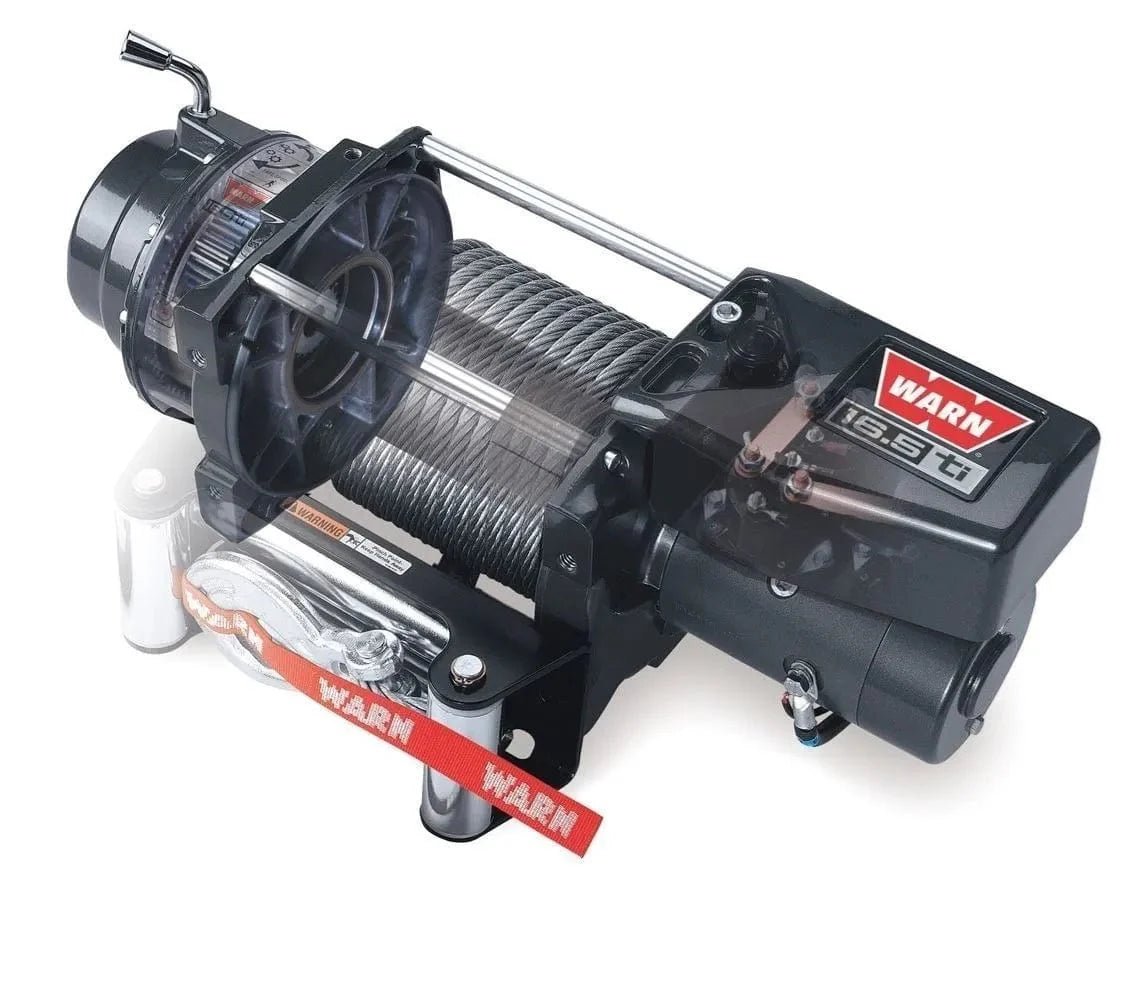

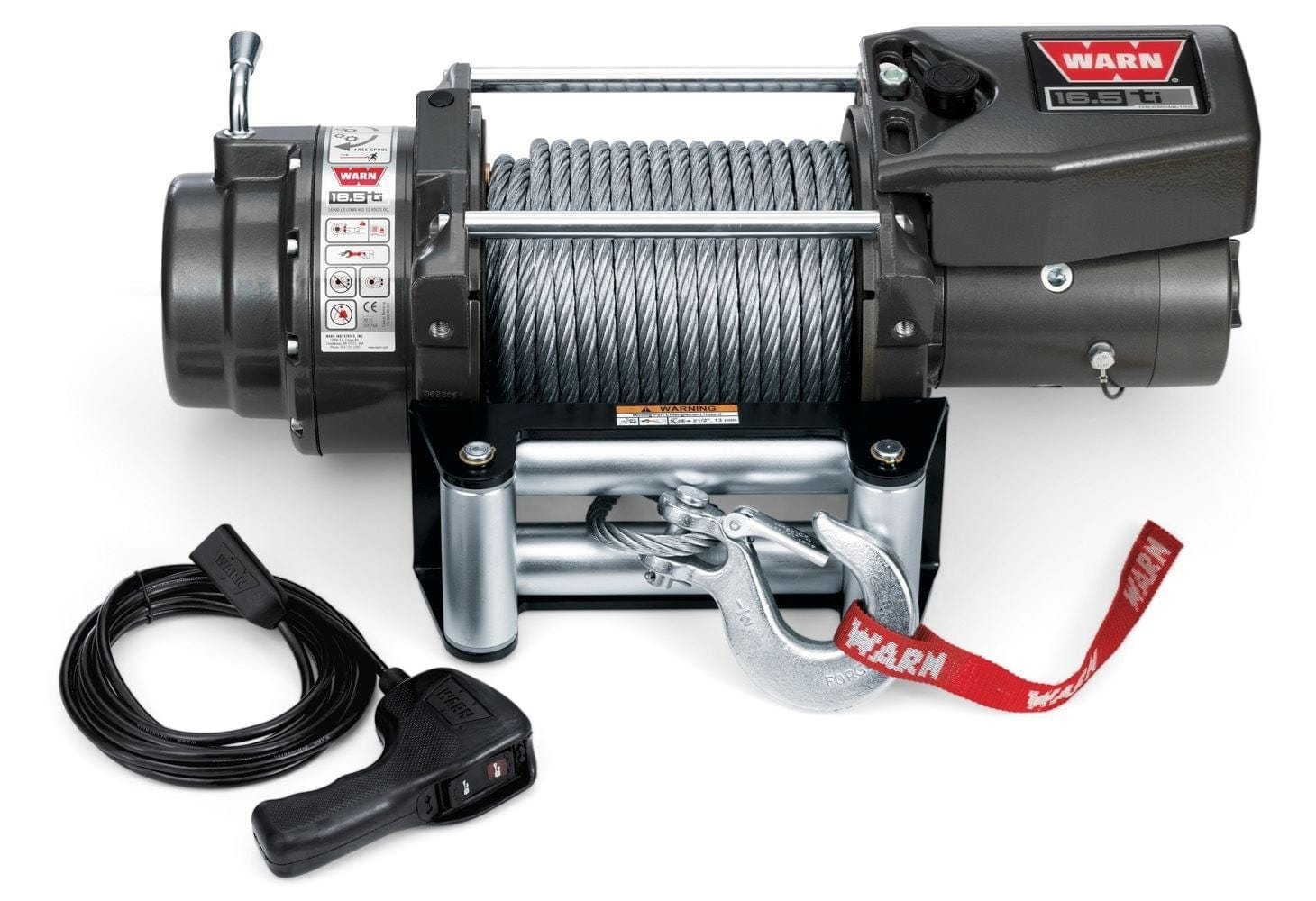

Warn 16.5ti Winch 68801
Features:
- Extreme-duty sealing helps protect the winch from the outside elements
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Exclusive brake design provides superior control while winching
- Aluminum control box cover for added protection of the electronics
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
- Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
- 90' of 7/16" (27m of 11mm) diameter wire rope
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Details:
- Winch Rating: 16500 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 90 Feet
- Line Material: Steel

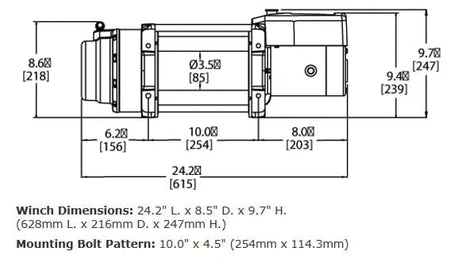

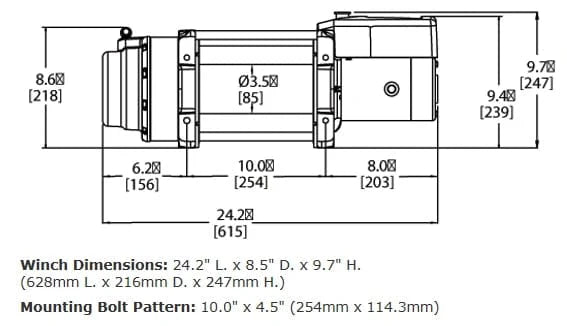

- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Direct Drive Cone

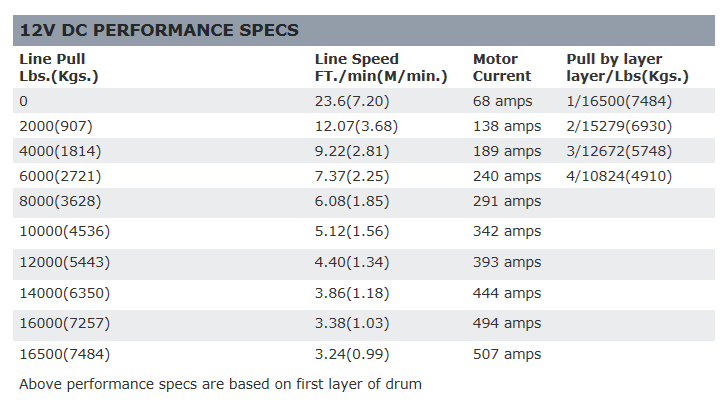

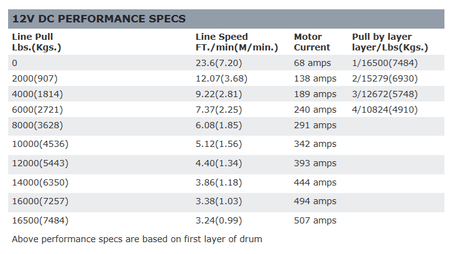

- Max Amp Draw: 507 Amp Draw At 16500 Pound
- Gear Reduction Ratio: 315:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Gray
- Motor Horsepower: 4.6 Horsepower
- Fairlead Type: Roller
- Remote Type: Wired
- Line Speed At Max Pull: 3.2 Feet Per Minute At 16500 Pound
- Electrical Control Type: Solenoid
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 7/16 Inch
- Mounting Hole Quantity: 4
- Drum Material: Aluminum
- Estimated Install Time (Hours): 2
