Warn 110014 ZEON XD 14-S Winch
SKU:
110014
$1,82749
$2,33006
Unit price
/
Unavailable
Specifications
| Style | |
| Part Number | |
| Finish | |
| Weight |

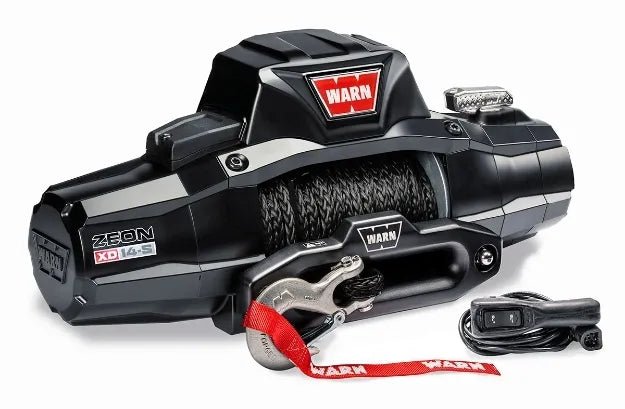

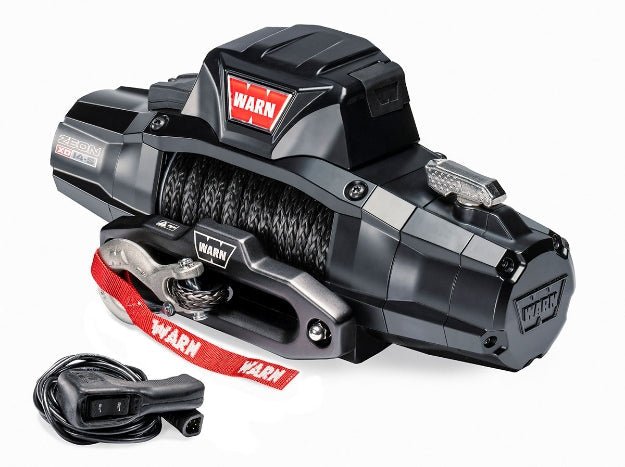

WARN 110014 ZEON XD
Features:
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
- New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
- Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
- Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
- Full metal armor protects components from impact and damage.
- WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
- Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
- Available in 10,000 lb. and 12,000 lb. capacities, with synthetic rope, for a variety of trucks, Jeeps, and SUVs
- Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
Specifications:
| Rated Line Pull (Single Line) | 14,000 lbs. (6350 kg) |
| No Load Line Speed | 26.1 ft/min (7.95m/min) |
| Rated Load Line Speed | 2.1 ft/min (0.64m/min) |
| No Load Motor Current | 65 Amps |
| Rated load motor current | 482 Amps, 466 Amps |
| Zeon XD Motor | 12V DC, series wound (exclusive WARN high-performance design) |
| Zeon XD Electrical controls | Contactor |
| Wiring | Automotive OE-grade buss bars |
| Zeon XD Corrosion Resistance | 408 hour salt spray |
| Zeon XD Ingress Protection | IP68 submersion and IP69K spray testing (entire unit) |
| Remote Control | Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver |
| Geartrain | 3-stage planetary |
| Zeon XD Gear Ratio | 213:1 |
| Zeon XD Clutch (freespooling) | Rotating ring gear with stainless steel clutch lever. Manual lever operation. |
| Brake | Automatic, six segment mechanical cone |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Rope | 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic |
| Fairlead | Black anodized, forged aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon XD Finish | Satin-black powder coat |
| Final point of assembly | Warn facility in Clackamas, Oregon, USA |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Weight | 85lbs (in box) |
