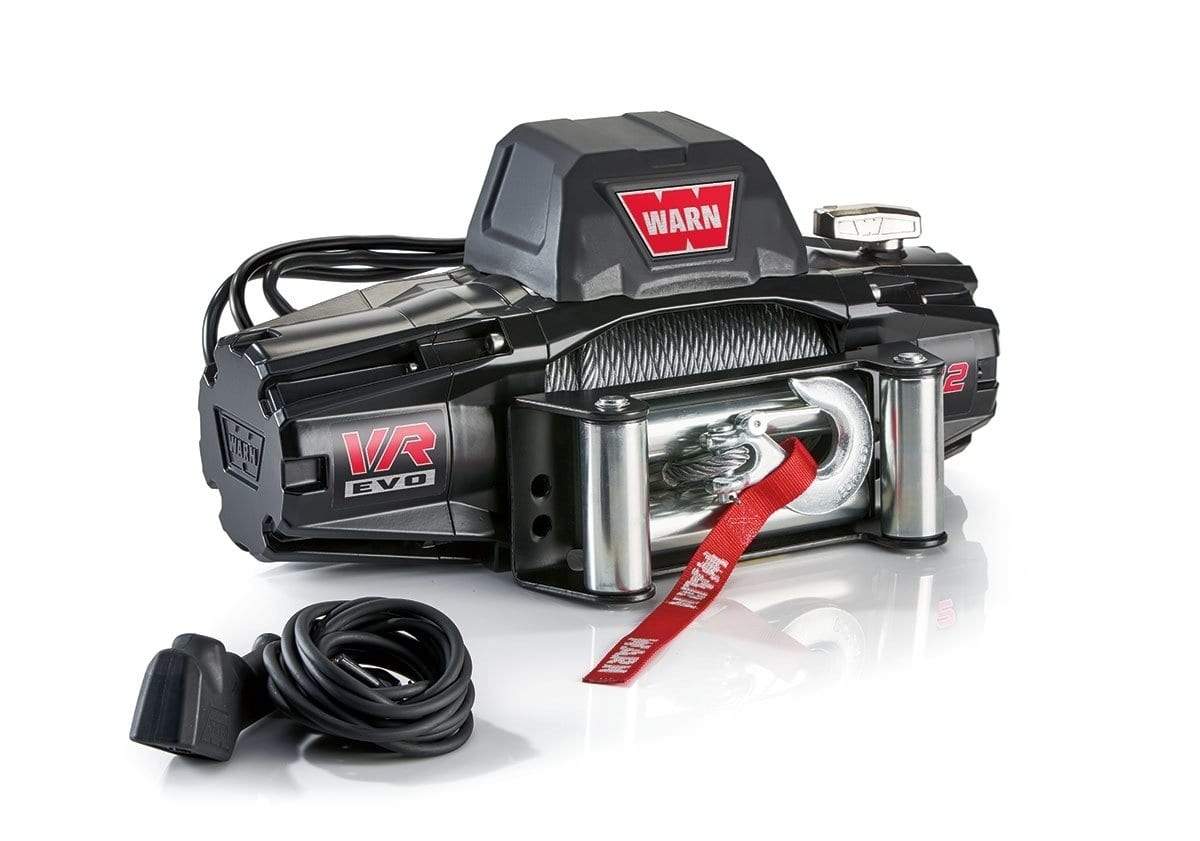

Warn 103254 VR EVO 12K Standard Duty Winch
SKU:
103254
$88465
$1,06158
Unit price
/
Unavailable
Specifications
| Style | |
| Part Number | |
| Finish | |
| Weight |
Features:
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece cast-aluminum tie-plate for added strength and durability
- Two-in-one remote with wired AND wireless options for ease of use and versatility
- Limited lifetime warranty for mechanical parts and 7 years on the electrical
Details:
- Winch Rating: 12000 Pound
- Recommended Use: ATV/ UTV
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 85 Feet
- Line Material: Steel
- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Spring Applied Disc
- Max Amp Draw: 396 Amp Draw At 12000 Pound
- Gear Reduction Ratio: 234:1
- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Roller
- Remote Type: Wired
- Line Speed At Max Pull: 4 Feet Per Minute At 12000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Drum Material: Steel
- Estimated Install Time (Hours): 2
