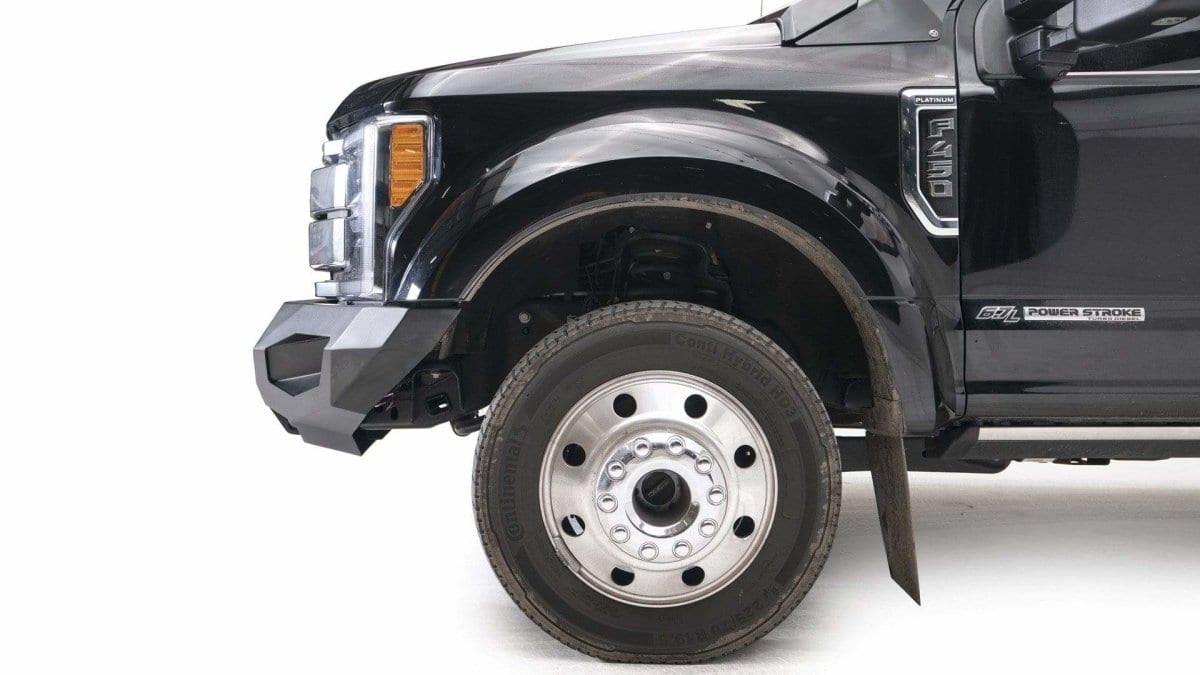

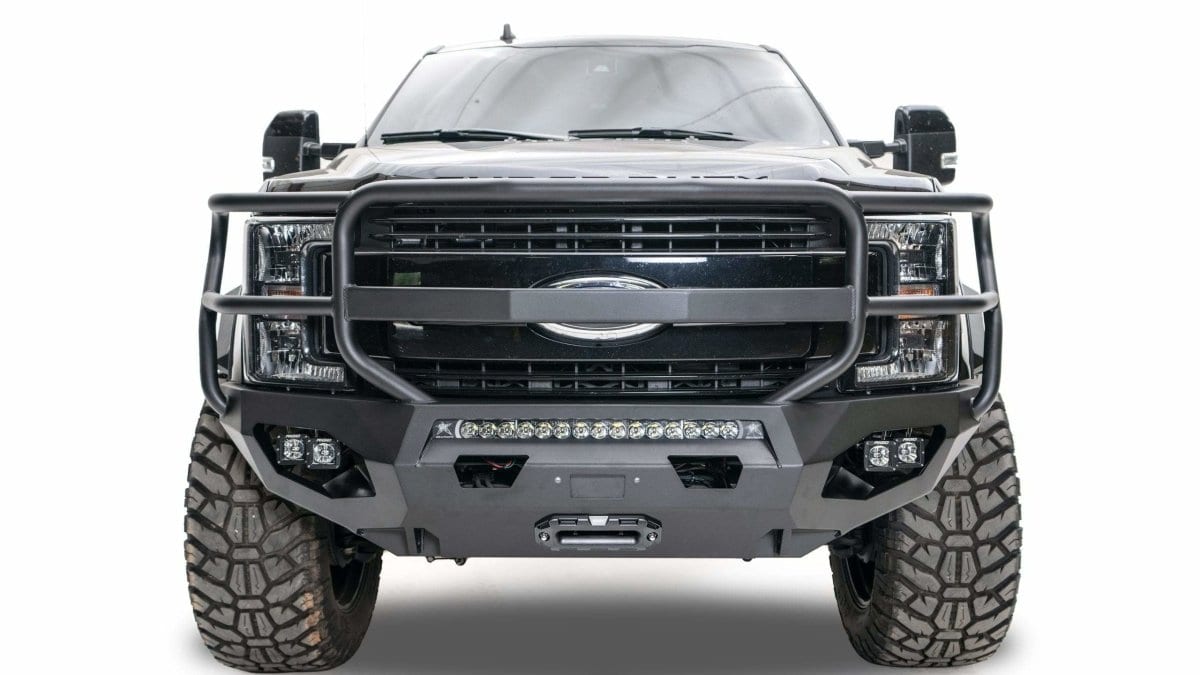

Fab Fours FS17-X4160-1 Ford F250/F350 Super Duty 2017-2022 OE Wheel Well Matrix Front Winch Bumper Full Guard

Fab Fours Matrix FS17-X4160-1

Features:

• Winch ready for Warn Zeon 12 or Lower. Bolt Pattern is 10″x4.5″. See Notes Section of Relocation Kit Part Numbers.
• Center mount accommodates a single row 30″ light bar (not included). Double row can be used if not running a winch
• Accommodates factory 360° camera (2017-2023 models). Minor camera interference with Pre-runner and Full Grille Guard
• Side mounting slots and tabs will hold up to (4) 3″ X 3″ cube lights (lights not included). Flush Mounts will not work. Must use single bolt setup.
• Accommodates Adaptive Cruise Control.
• Standard Design Available in Full Guard / Pre-runner Guard/ No Guard options (Meets Factory Wheel Well)
• Open Fender Design Available in Full Guard / Pre-runner Guard/ No Guard options (Shorter Wheel Well Extension)
• Slim “High and Tight” Design
• Removable light inserts for optimal customization
• Provides far more tire clearance.
• Integrated D-Ring Mounts

Compatible with WARN products only:

• 89970 ZEON, Short Kit (31”)

• 89960 ZEON, Long Kit (78”)
• 89970 ZEON Platinum, Short Kit (31”)
• 92193 ZEON Platinum, Long Kit (78”)
• 106011 VR EVO, Long Kit (78”)
• *Tremor models vary on winch designs. Please confirm bolt pattern prior to purchase.*

Important Notes:

• NOTE: If running a Warn Zeon, Control Box Relocation Kit (89960) is required. Any winch with running a light bar will require relocation of the control box
• NOTE: Double row can be used if not running a winch
• NOTE: Minor camera interference with Pre-runner and Full Grille Guard
• NOTE: Open Fender Design (X4150, X4151, X4152) requires a relocation bracket for adaptive cruise control on 2017-2019 Super Duty models (M3850-1). Chrome grilles will not work with the relocation bracket. Re-calibration Recommended
• NOTE: Standard design (X4160, X4161, X4162) has an integrated relocation bracket in the bumper. This design will not work with our open fender system. Re-calibration Recommended
• NOTE: Flush Mounts or Surface Mounts will not work. Must use single bolt setup
